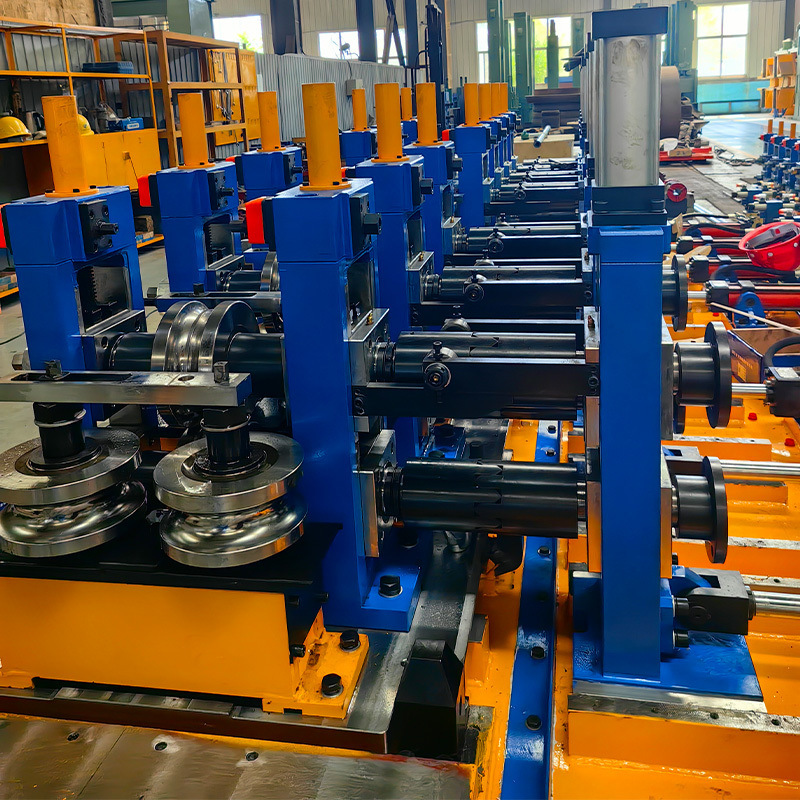

High Speed ERW Square Tube Mill for Carbon Steel 19-60.3mm

Name: High Speed ERW Square Tube Mill for Carbon Steel 19-60.3mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

제품 세부 사항:

원래 장소:	헤베이
브랜드 이름:	Teng Tian
인증:	CE / ISO9001:2008/ BV
모델 번호:	HG60

자세한 정보

원래 장소:

헤베이

브랜드 이름:

Teng Tian

인증:

CE / ISO9001:2008/ BV

모델 번호:

HG60

밀 이름:

고속 ERW 사각 관 분쇄기를 형성하는 높은 정밀도 탄소 강관 롤러

라인 속도:

최대 1000m/분

형성 방법:

롤러로 콜드 롤 형성

용접 유형:

높은 중성 용접

절단:

차가운 톱; 버없이

특징:

높은 정밀도; 더 안정적입니다. 고속;

맞춤형:

고객 요구 사항에 따라 기계 설계

직경 범위:

19-60.3mm

두께 범위:

0.7-3.0mm

강조하다:

High Light

강조하다:

ERW square tube mill for carbon steel

high speed square tube mill 19-60.3mm

carbon steel square tube mill with warranty

거래 정보

최소 주문 수량:

1세트

가격:

$100000 to $1 million

포장 세부 사항:

특수 수출 포장 및 컨테이너에 고정

배달 시간:

3개월

지불 조건:

T/T,L/C

공급 능력:

100 세트 / 년

제품 설명

High Precision Carbon Steel Pipe Roller Forming High Speed ERW Square Tube Mill

Key Specifications

Attribute	Value
Mill Name	High Precision Carbon Steel Pipe Roller Forming High Speed ERW Square Tube Mill
Line Speed	Max. 100m/min
Forming Method	Cold Roll Forming by Rollers
Welding Type	High Frequency Welding
Cutting	Cold Saw; Without Burr
Feature	High Precision More Stable High Speed
Customized	Machine Designing As Per Customer Requirement
Diameter Range	19-60.3mm
Thickness Range	0.7-3.0mm

Product Description

This high-speed ERW square tube mill is designed to produce welded pipes in diameters ranging from 19mm to 60.3mm with wall thicknesses from 0.7mm to 3.0mm, as well as corresponding square and rectangular pipes. These products are widely used in metallurgy, construction, transportation, machinery, and vehicle industries.

Production Process

Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding → Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse

Technical Specifications

1. Raw Material

Material application	HRC, CRC, galvanized steel strips
Material grade	Low-carbon steel, low alloy steel: δs≤235Mpa
ID of the steel strips	Φ450-Φ508mm
OD of the steel strips	Φ800-Φ1500mm
Coiler weight	Max. 3000kg

2. Production Range

Round Pipe	19 - 60.3mm	Thickness: 0.7-3.0mm
Square Pipe	1616 - 5050mm	Thickness: 0.7-2.0mm
Rectangular Pipe	1520 - 6040mm	Thickness: 0.7-2.0mm

Additional Specifications

H.F. Welder	GGP200Kw Solid State
Line Speed	Max. 100m/min
Tube Length	4-12m
Pipe Dia. Accuracy	±0.03mm
Cutting Accuracy	±3mm
Installation Capacity	400kw

As a CE & ISO9001:2008 certified pipe making machine manufacturer and supplier in China, our high-quality, reliable performance machines with long service life have been exported to nearly 40 countries including Turkey, Egypt, Morocco, Kazakhstan, Uzbekistan, Tajikistan, Syria, Iran, Iraq, Mexico, Sri Lanka, Pakistan, Thailand, Vietnam, and others.

For more information about this product, please don't hesitate to contact us. We're happy to assist you.
