정연한 관 분쇄기
>
Square Pipe Making Machine 60m/Min High-Frequency

Square Pipe Making Machine 60m/Min High-Frequency

제품 세부 사항:
원래 장소: 중국 스자좡 시
브랜드 이름: Tengtian
인증: CE,ISO9001, BV
모델 번호: HG114
자세한 정보
원래 장소:
중국 스자좡 시
브랜드 이름:
Tengtian
인증:
CE,ISO9001, BV
모델 번호:
HG114
제품 이름:
사각형 파이프 제작 기계 60m/분 고주파
튜브 _size:
사용자 정의 가능
튜브 크기:
40x40 ~ 90x90mm
속도:
≤2.5t
전압:
사용자 정의 가능
지름:
32-114mm
coil_width:
사용자 정의 가능
용접:
하이 주파수 용접
용인:
0.7-4.0mm
둥근 파이프 직경:
0.7-4.0 mm
용접의 유형:
고주파 용접
Power_Source:
전기 같은
스트립 두께:
1.0-5.0mm
라인 속도:
최대 1000m/분
키워드:
20-50m/분
기능:
차가운 톱 또는 뜨거운 톱
핵심 단어:
사각 파이프 성형기
강조하다:

High Light

강조하다:

Square Pipe Making Machine 60m/Min

,

High-Frequency Square Tube Mill

,

Square Tube Mill with warranty

거래 정보
최소 주문 수량:
1 세트
가격:
$100000 to $1 million
포장 세부 사항:
표준 수출 포장
배달 시간:
90 일
지불 조건:
l/c, t/t
제품 설명

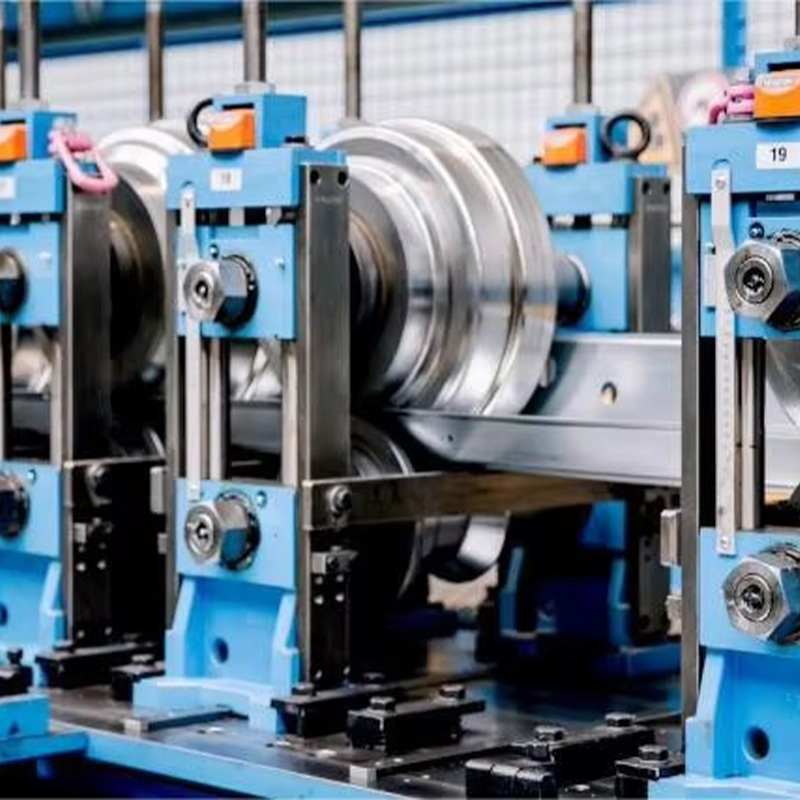

Square Pipe Making Machine 60m/Min High-Frequency
Square Pipe Making Machine 60m/Min High-Frequency 0
Key Specifications
Attribute Value
Tube Size Range 40x40—90x90mm (Square/Rectangular), 32-114mm (Round)
Wall Thickness 1.0-5.0mm
Maximum Line Speed 100m/min
Welding Type High frequency welding
Power Source Electric (Customizable Voltage)
Cutting Method Cold Saw or Hot Saw
Product Overview

The HG114 High-Frequency Welded Pipe Mill Line is engineered to produce precision welded pipes with diameters ranging from 50-114.0mm and wall thicknesses from 1.0-5.0mm. This versatile system also manufactures square, rectangular, and deformed pipes of corresponding sizes. Featuring advanced roll pass design, this production line delivers superior quality welded steel pipes with exceptional machining precision.

Square Pipe Making Machine 60m/Min High-Frequency 1
Available Models
Model Thickness (mm) Specification (mm) Speed (m/min) Main Power (kw)
H20 0.3-1 8-20 30-120 55
H32 0.3-2.0 12-32 30-120 75
H50 0.8-2.5 16-50 30-110 110
H60 0.8-3 20-60 30-100 132
H76 1-3 12-76 30-100 320
H89 1-4 32-89 30-80 350
HG114 1.5-5 45-114 30-60 400

Square Pipe Making Machine 60m/Min High-Frequency 2

Production Process
  1. Loading car → Uncoil → Cutting and Welding
  2. Accumulator → Forming
  3. HF welding → Anneal welder → Deburring
  4. Cooling → Sizing → Straightening
  5. STD Cold-cutting saw → Transmitting
  6. Hydrostatic testing → End facer → Straightener
  7. Packing → Storage



Square Pipe Making Machine 60m/Min High-Frequency 3
Comprehensive Service Package
  • Installation & Training: Our engineers will install the equipment and train your operators
  • Warranty: 1-year quality guarantee with lifetime repair support
  • Pre-Sale Services: Workshop design and production output planning
  • After-Sale Support: Ongoing technical assistance and skilled engineer deployment
  • Project Design: Complete project planning for stainless/carbon steel pipe production
  • Logistics: Full responsibility for loading and shipping arrangements
Product Name: Square Pipe Making Machine Max Forming Speed 60m/Min Pipe Diameter 114.3mm Square Tube Mill
Pipe Material: Carbon Steel
Power: 1500KW
Speed Range: 20 - 60m/Min
Pipe Shapes: Round, Square & Rectangular
Round Pipe Diameter: 33.4mm-114.3mm

Square Pipe Making Machine 60m/Min High-Frequency 4

Square Pipe Making Machine 60m/Min High-Frequency 5

Square Pipe Making Machine 60m/Min High-Frequency 6

 Square Pipe Making Machine 60m/Min High-Frequency 7Square Pipe Making Machine 60m/Min High-Frequency 8

Square Pipe Making Machine 60m/Min High-Frequency 9

1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.

2.) Warranty Team

One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.

3.) We supply the pre-sell and after-sell service.

pre-sell service: workshop design, and production output design

after-sell service: installation and training, and the skilled engineer for working.

4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.

5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.

6.) We will be responsible for the loading and shipping

Square Pipe Making Machine 60m/Min High-Frequency 10

FAQ:

Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.

Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm

Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.

Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system

Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
