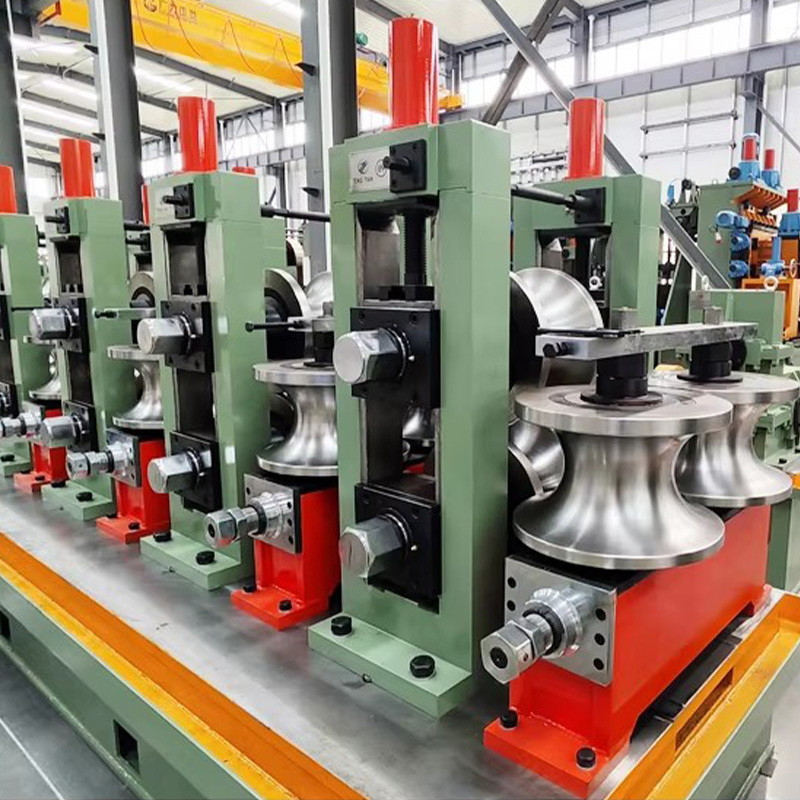

Q235 Carbon Steel Pipe Making Machine for Round Pipes 219mm

Name: Q235 Carbon Steel Pipe Making Machine for Round Pipes 219mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG219
Price: 50,000.00 USD
Availability: InStock

제품 세부 사항:

원래 장소:	중국
브랜드 이름:	TengTian
인증:	BV,CE,ISO
모델 번호:	HG219

자세한 정보

원래 장소:

중국

브랜드 이름:

TengTian

인증:

BV,CE,ISO

모델 번호:

HG219

제품 이름:

Q235 둥근 파이프 용 탄소 강관 제작 기계

코일:

Q235

지름:

219mm(최대)

두께:

6mm

길이:

6-9M

무게:

8 톤

커터:

뜨거운 톱

런아웃 테이블:

18m

핵심 단어:

둥근 파이프 용 탄소 강 파이프 제작 기계

강조하다:

High Light

강조하다:

Q235 carbon steel pipe machine

round pipe making machine 219mm

steel pipe machine with warranty

거래 정보

최소 주문 수량:

1 세트

가격:

$100000 to $1 million

포장 세부 사항:

플라스틱 필름 권선, 전기 부품용 나무 케이스

배달 시간:

150 일

지불 조건:

l/c, t/t

공급 능력:

연간 21세트

제품 설명

Q235 Carbon Steel Pipe Making Machine For Round Pipes

Product Specifications

Attribute	Value
Product Name	Q235 Carbon Steel Pipe Making Machine For Round Pipes
Coil	Q235
Diameter	219mm (max.)
Thickness	6mm
Length	6-9M
Weight	8 Tons
Cutter	Hot saw
Runout Table	18M

Product Description

This Q235 Carbon Steel Pipe Making Machine is designed to produce high-quality welded steel pipes, including round, square, and rectangular pipes. Featuring advanced roll pass design, the production line ensures precise machining and high-quality assembly.

Material Specifications

Standard: Conforming to YB189-64 standard
Material: Low carbon steel and low alloy steel, Q235
Strip Width: 320-700mm
Strip Thickness: 1.5-6.0mm
Inner Diameter of Coils: φ470～φ510mm
Outer Diameter of Coils: Φ1000～φ1800mm
Coil Weight: ≤8T

Pipe Specifications

Pipe Size:
- Round Pipe: ø89-219mm
- Square Pipe: 80x80 - 175x175mm
Thickness: 1.5-6.0mm
Length: 6m
Forming Speed: 20-50 m/min

Buyer-Supplied Requirements

Total capacity: Around 850 kw
Circulation Cooling Water (whole system):
- Flow: 20T/h～30 T/h
- Pool Volume: 30m³
Compressed Air (whole system):
- Flow: 5m³/min
- Pressure: 5-7kg/㎡
Cable: All cables outside of the machine must be purchased after machine installation

Note: We typically send 2-3 engineers to perform installation and commissioning. The buyer is responsible for providing round-trip tickets, food & accommodation, local transportation, and a technical service fee of $150 per day per engineer.
